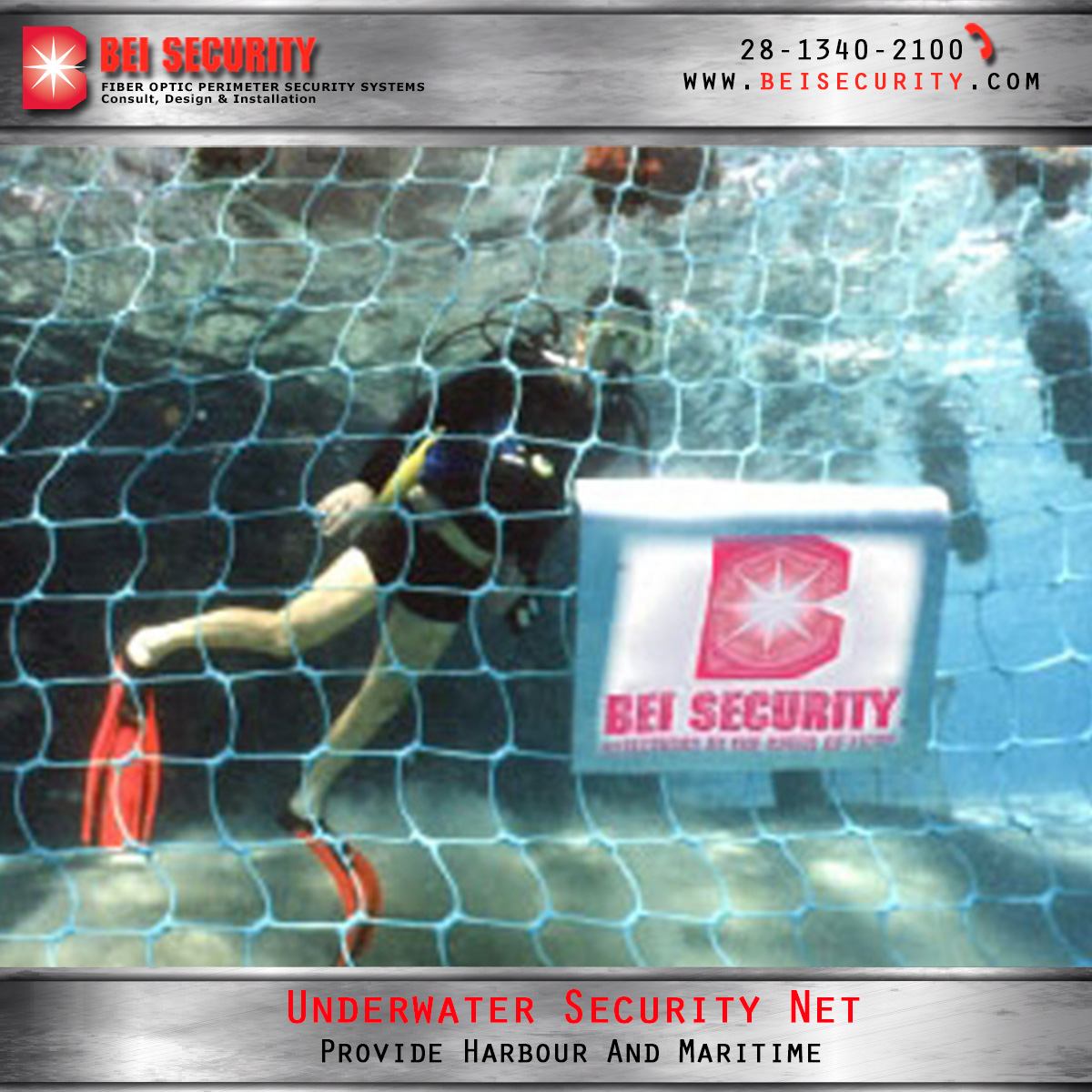

Underwater Security Net

Provide Harbour And Maritime

The Underwater Security Net is the ideal solution to provide harbour, oil platform and maritime security. Designed to stop intruders both above and below the water line from penetrating into sensitive areas, the Westminster Security Net is designed for protecting areas from unauthorised access.

Applications

• Ports / harbour's;
• Offshore facilities such as gas & oil platforms;
• Naval Bases;
• Special Harbour Areas, i.e. highly protected areas of the harbour during the Olympic Games;
• Underwater cables and pipelines.

Specifications

• Cable: Single mode fibre optical cable in a stainless steel wire rope in special construction.
• Net Structure: The squares of the net are 16cm x 16cm. The cross-points are well connected by stainless steel connecting ferrules. The net is positioned 2 m above the water line. At the bottom the net is secured with heavy concrete blocks.
• Floating System: The floating system consists of PE tubes, 40 cm in diameter. The connecting parts between the tubes are specially designed stainless steel hangers.
• Net Anchor System: The net anchor system consists of heavy concrete blocks standing on the lower part of the net at the bottom of the sea.
• Gate Entrances: Where vessels need to pass into the protected area a vertical gate arrangement can be incorporated in order to raise and lower sections of the fence as authorised ships pass by.
• Anti-Ramping System: The net can be supplied with an anti-ramping system so that in the event of a small - medium sized marine vessel ramping up to break through the net structure, the system will withstand the impact and prevent the vessel breaching the security net.
• Sonar Integration: The system can easily be integrated with a Diver Detection Sonar (DDS) system providing a comprehensive solution against underwater attack.
• Control and Command System: The system will be monitored and controlled via a bespoke control and command system connected to individual fibre optical transceivers. The system can also be interfaced with the port or harbour security system by means at WLAN or other means of communication infrastructure.
• A PC based monitor and control system is connected to individual fibre optical transceivers. In the event of cutting of the net, an alarm may be activated and the exact location of attack is indicated at command & control.

Source: wi-ltd
